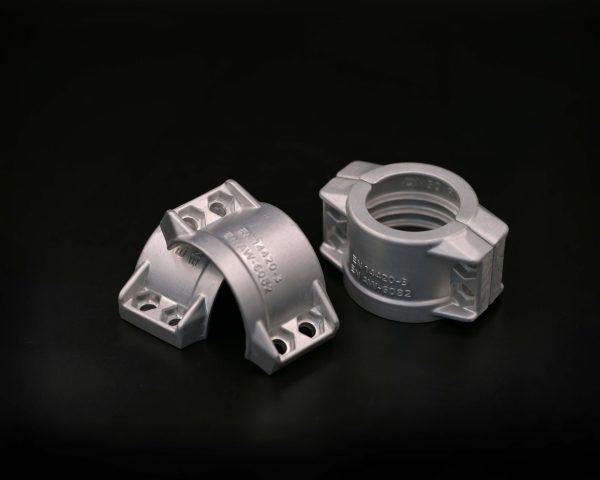

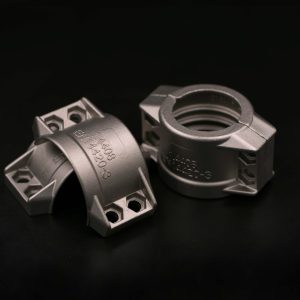

Aluminum Safety Clamp

Aluminum Safety Clamp

11111

Material：EN-AW6082

Norm：EN14420-3/DIN2817

Bolt：DIN912/EN ISO4762 Grade 10.9

Nut：DIN934/EN ISO4.32 Grade 10

ND	Size	OD Hose	Dimensions		Nuts and Bolts		Weight/ pc
ND	Size	OD Hose	Height	Width	Quan	Thread Metric	Weight/ pc
	mm	mm	mm	mm	pc		kg
15	13×5	22-24	50	51	4	M6×20	0.10
20	19×6	30-33	50	63	4	M6×20	0.14
25	25×5	34-36	50	69	4	M6×20	0.14
25	25×6	36-39	50	69	4	M6×20	0.14
32	32×5	41-43	50	76	4	M6×20	0.16
	32×6	43-46	50	75	4	M6×20	0.16
	32×8	47-50	50	79	4	M6×20	0.16
38	38X5	47-49	50	83	4	M6X20	0.17
	38×6.5	50-52	50	83	4	M6×20	0.17
	38×8	53-55	50	83	4	M6×20	0.17
	38×10	57-59	50	83	4	M6×20	0.18
50	50×5	58-62	56	97	4	M8×25	0.28
	50×8	64-67	56	103	4	M8×25	0.29
	50×10	68-72	56	103	4	M8×25	0.30
65	63X6	74-77	74	117	4	M8X25	0.43
	63×8	78-82	74	120	4	M8×25	0.43
	65×10	84-87	75	124	4	M8×25	0.44
75	75×6	86-89	76	128	4	M8×25	0.50
	75×8	88-93	76	133	4	M8×25	0.50
	75X10	94-97	76	132	4	M8X25	0.52
80	80X8	94-97	76	132	4	M8X25	0.52
100	100×8	114-119	120	166	4	M10×40	1.20
	100X10	118-122	120	174	4	M10X40	1.20
	100×12	123-125	120	188	4	M10×40	1.30
	100×14	126-130	120	188	4	M10×40	1.40
	100×16	130-134	120	188	4	M10×40	1.40
125	125×10	143-148	145	210	6	M10×40	2.10
125	125×13	150-153	145	210	6	M12X60	2.10
150	150×10	168-174	180	233	6	M12×60	3.50
150	150×13	174-180	182	233	6	M12×60	3.50
200	200X12	222-229	243	288	8	M12X60	6.52
200	200X16	230-239	243	294	8	M12X60	6.75
